Self Bailer - XL Part #9926
Frequently Asked Questions
Outdoor spill containment faces a challenge in the form of rain. Rainwater that has collected in a spill containment sump reduces that sump’s capacity to effectively contain a spill. In other words, if a containment sump is filled with water, it can no longer be filled with a spill.

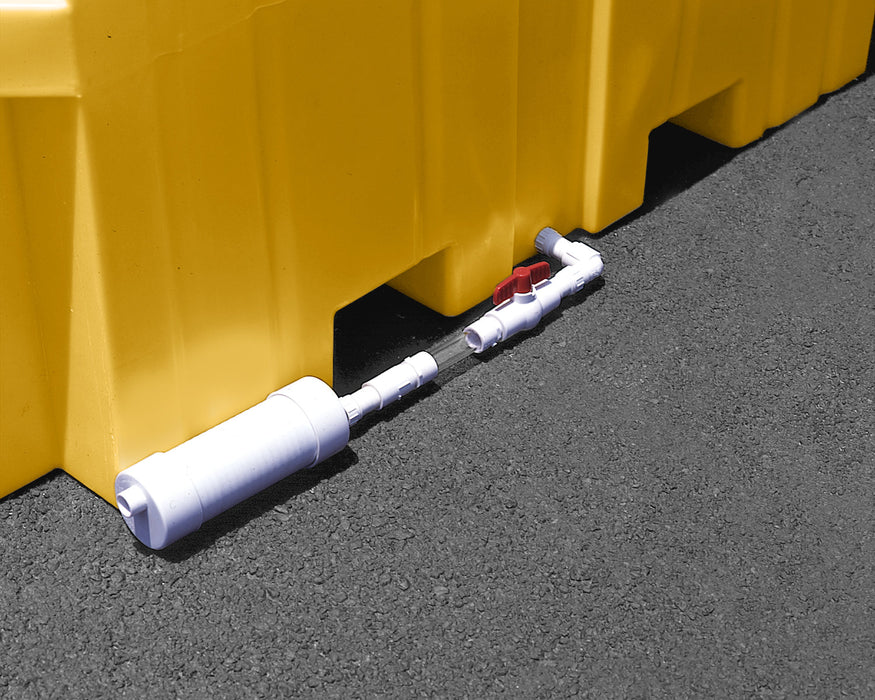

The Ultra-Self Bailer allows rainwater to pass through while removing any residual hydrocarbons from the water flow.
The Ultra-Self Bailer comes with a female 3/4″ NPT fitting, as well as a coupler fitting. If your pallet, sump, etc. is fitted with a 3/4″ NPT drain (all UltraTech products use this type of drain), you will not need additional parts.
If your part does not have a 3/4″ NPT drain, you will also need a bulkhead fitting (P/N 1073). A hole (1 9/16″) will need to be drilled into the sidewall of your product, and the bulkhead fitting installed in the hole. The Ultra-Self Bailer (using the included coupler fitting) can then be installed in the bulkhead fitting.
As you might have guessed, the shut-off valve is a manual shut-off to completely stop water (and anything else) from passing through the Ultra-Self Bailer. The shut-off valve is useful when switching out filter cartridges. It can also be used if you happen to see a spill taking place, in which case you can prevent the spill from reaching the filter media and won’t need to replace it with a new one.
The life of your Ultra-Self Bailer’s filter media cartridge will depend on the amount of oil/hydrocarbons present in the water that is draining through the unit. As the filter media becomes saturated with oil, it expands and the water flow will become more and more restricted. The filter should be replaced once the water’s flow rate is no longer sufficient.
When circumstances allow, the use of polypropylene absorbents (not included) inside of the containment sump as a “pre-filter” should extend the life of your Ultra-Self Bailer.
No, the pictures are correct. By placing the drain port at the top, any water that passes through is forced to flow up through the filter media, giving it (the media) more time to remove oil and hydrocarbons from the flow.
Water flow from the drain port of the Ultra-Self Bailer is an excellent indicator of the amount of oil/hydrocarbons that have been absorbed by the unit. When that water flow has been severely restricted or completely stopped, the Ultra-Self Bailer’s filter is “full” and needs to be changed as soon as possible.
More Info / Downloads
This product may not address any specific regulations but if you have any questions, we’re here to help.
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416099263 Ultra-Self Bailer XL (Part #9926)
