Pellet Containment for Rail Spurs: How to Stop Pellet Loss at Hopper Car Unloading
Quick Answer
The most effective way to contain plastic pellets at a rail spur is to install drained pellet pans under every hopper car unloading position: a center pan between the rails, side pans outside each rail, and pellet deflectors to stop pellets from bouncing out. The pans catch pellets 1 mm and larger while letting rainwater drain through, so stray pellets stay on your property instead of washing into storm drains. Pair the pans with Operation Clean Sweep housekeeping (sealed bottom caps, vacuum cleanup, routine inspections) and you have a containment program regulators recognize.
Why rail spurs are the leakiest spot in a pellet operation
Most resin pellets move by rail in covered hopper cars, and the unloading spot is where they escape. Hopper cars are typically emptied through bottom outlets using vacuum hoses and pneumatic conveying. Every connection, disconnection, and pressure surge at the outlet can spit pellets onto the ties and ballast. Once they are in the ballast, they are nearly impossible to pick up, and the next rainstorm carries them toward the nearest drain.
Common loss points at a spur:
- Bottom outlet gates and caps during hookup and disconnect
- Surges in the unloading line that vent pellets at the outlet
- Bottom caps left unsealed after unloading, which drip pellets down the track
- Hoses dragged or dropped across the ballast
- Residual pellets on the car that shake loose when it is pulled
If your facility has a spur, the unloading position deserves its own containment, not just a screen on a storm drain somewhere downstream.
What regulators expect in 2026
Pellet discharge rules are tightening, and rail unloading areas are an obvious inspection target.
- California has required containment since 2008. Water Code Section 13367 directs the state to require plastic manufacturing, handling, and transportation facilities to install containment at storm drain discharge points downgradient of areas where pellets are present or transferred. The state's Industrial General Permit uses a 1 mm capture standard.
- Federal Multi-Sector General Permit. In the states where EPA issues stormwater permits directly (Idaho, Massachusetts, New Hampshire, New Mexico, plus some federal and tribal lands), facilities handling preproduction plastic must implement controls to eliminate plastic in stormwater discharges.
- Illinois enacted House Bill 4418 on August 7, 2026, directing Illinois EPA to write pellet best management practices into NPDES stormwater permits by August 7, 2027.
- Citizen lawsuits under the Clean Water Act are growing. Recent suits and settlements, including a recent settlement with BNSF over pellets along San Diego County's coastal rail lines, show that railroads and shippers are both on the hook.
- Operation Clean Sweep (OCS) is the industry's voluntary program. Its practices specifically call for collection pans in areas that leak pellets and sealing railcar bottom caps after unloading. Several Class I railroads have signed on.
Even where your state permit does not mention pellets by name, most industrial stormwater permits prohibit discharging floating solids in more than trace amounts. Pellets in a ditch next to your spur are exactly what an inspector or a watchdog group photographs.
This is general information, not legal advice. Check your facility's stormwater permit and your state environmental agency for the requirements that apply to you.
Pellet pans vs track pans vs track berms
All three sit at the rail, but they solve different problems.
| Pellet pans | Track pans | Track berms | |
|---|---|---|---|
| What they catch | Solid pellets 1 mm and up | Liquid leaks and spills | Drips and spills at a single release point |
| Drains | Yes, built in | No, sealed to hold liquid | No |
| Rainwater | Drains through, pellets stay | Must be pumped or drained manually | Must be emptied |
| Install | Long term, removable for cleaning | Long term | Portable, temporary |
| Best for | Resin and pellet unloading spurs | Fuel, chemical, and oil transfer | Short term or occasional transfers |
The key difference is the drains. A pellet pan without drains is just a track pan that fills with water every time it rains. A track pan with drains cannot hold a liquid spill. If you unload both pellets and liquids on the same spur, you need to decide which hazard governs that position, or set up separate positions.

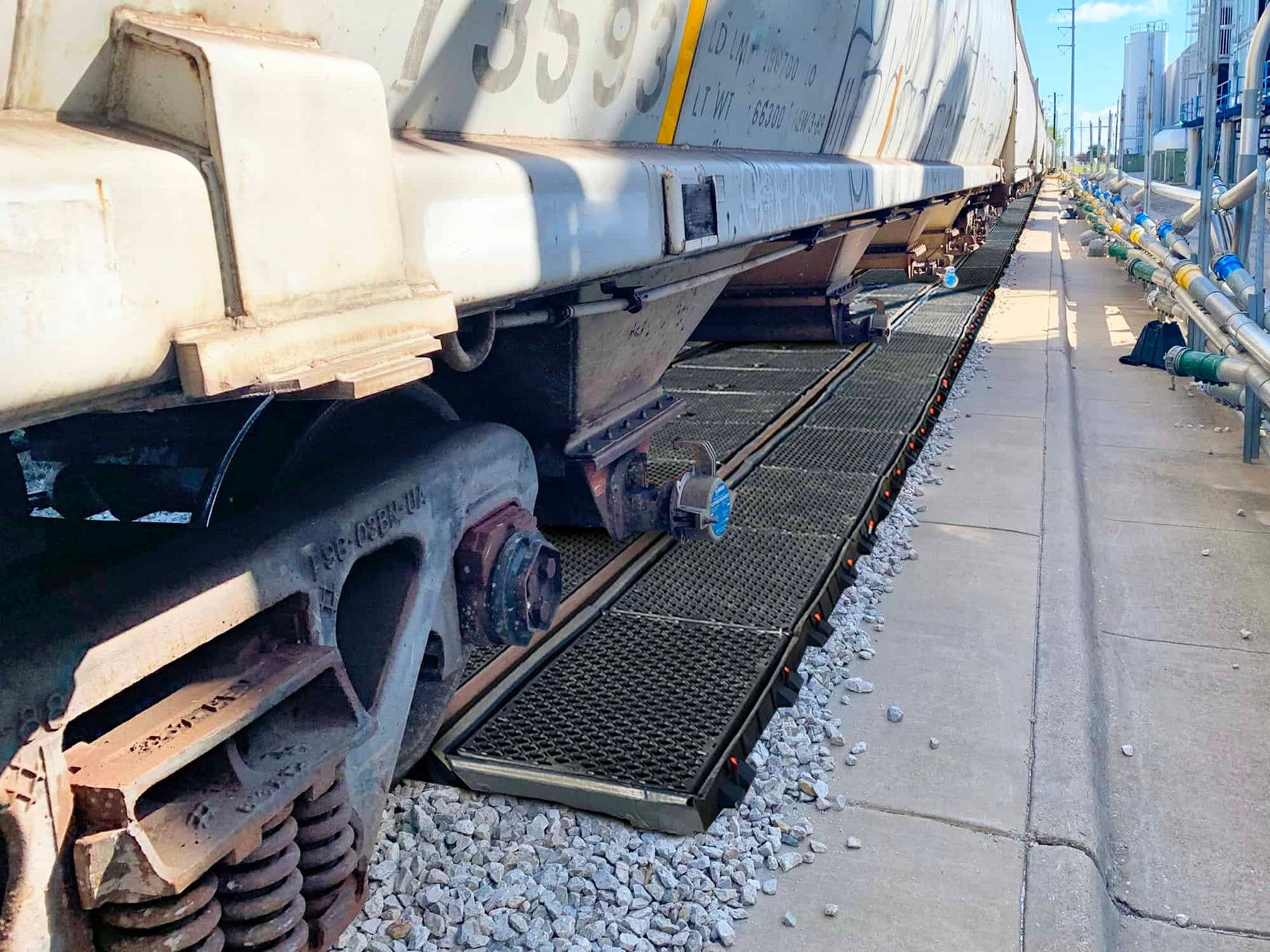

How the UltraTech Ultra-Pellet Pan system works
The Ultra-Pellet Pan system from UltraTech was developed after a rail customer participating in Operation Clean Sweep asked for catch pans with screens. It has three parts:
- Center Pan with Grates, Part #7560 sits between the rails under the hopper car outlets.
- Side Pan with Grates, Part #7562 sits outside each rail to catch pellets that spray sideways.
- Pellet Deflectors, 5 pack, Part #7570 keep pellets from bouncing back out of the pans.
Key specs from UltraTech:
- Each standard pan has two 3 inch drains (composite pans have three).
- Drains are designed to capture pellets 1 mm in diameter and larger, which lines up with California's 1 mm capture standard.
- Water drains no matter how many pellets are sitting in the pan, so a full pan will not flood.
- Grating is required in the standard polyethylene pans.
- Deflectors are optional but strongly recommended. Without them, pellets are likely to bounce out.
- Installation takes basic hand tools. The pans are built for long term installation but can be pulled for cleaning or inspection.
If your spur also handles liquids, UltraTech's Composite Track Pans cover the liquid side, and the portable Track Berm, Part #8490 works for short term or occasional transfers.
How to spec pellet pans for your spur
We need four pieces of information to quote a system accurately:
- Rail height, rail width, and fastener type. UltraTech's Rail Height, Width, and Pandrol Worksheet walks you through the measurements. Fill it out and send it to us.
- Number of unloading positions. Each position where a hopper outlet is opened needs its own center pan, side pans, and deflectors.
- Length of track to protect at each position. Measure the span where outlets and hoses are connected, plus a margin on each side for car spotting.
- Delivery details. Pans ship by freight. Tell us whether your site has a dock or needs a liftgate.
Review the installation instructions before ordering so your crew knows what site prep the ballast will need.
Pans are half the program
Containment only works if someone empties it. Build these habits around the pans:
- Vacuum pellets out of the pans after every unload or on a fixed schedule. Vacuuming is preferred over sweeping or washing because it removes pellets instead of moving them.
- Seal bottom caps and close outlet gates before the car leaves the position.
- Inspect pans, grates, and deflectors weekly and after heavy rain.
- Log spills and cleanups. If you are an OCS member, those records support your reporting.
- Back up the spur with screens or filters on downstream storm drains, so the pans are your first line and not your only line. Our secondary containment guide covers the broader facility picture.
Get a pellet containment quote
Send us your completed rail worksheet, the number of unloading positions, and your delivery address. We'll price the full system, quote freight to your site, and turn it around fast. Email orders@industrialandsafetysupply.com or use the button below.
Frequently Asked Questions
Do I need pellet pans if I already have drain screens?
Drain screens catch pellets after they have already left the unloading area and spread across your site. Pellet pans catch them at the source, which makes cleanup faster and reduces the chance pellets wash past the screens in a heavy storm. Operation Clean Sweep recommends both.
What size pellets do pellet pans capture?
UltraTech Ultra-Pellet Pans are designed to capture pellets 1 mm in diameter and larger while letting rainwater drain out through built in 3 inch drains.
Can I use track pans to catch plastic pellets?
Standard track pans are sealed to hold liquids, so they fill with rainwater outdoors. Pellet pans are essentially track pans with drains and grates, built for solids. Use track pans for liquid transfers and pellet pans for resin unloading.
Are pellet deflectors required?
They are not required, but UltraTech strongly recommends them. Without deflectors, pellets hitting the pans at high speed from the unloading hose tend to bounce out.
Can pellet pans be removed for cleaning or track maintenance?
Yes. The pans are designed for long term installation but can be removed for cleaning, inspection, or track work.
Which regulations require pellet containment at rail spurs?
California requires containment at facilities that handle or transport preproduction plastic. The federal Multi-Sector General Permit requires controls in states where EPA issues stormwater permits, and Illinois is writing pellet requirements into permits by August 2027. Elsewhere, general stormwater permit limits on floating solids can apply. Check your own permit.
